About Racking & Shelving Machine
ARMDAX design and manufacture turnkey roll forming lines for manufacturing shelf panels , rack uprights，P-beams and Bracings. Our systems integrate Uncoiling feeding →leveling →punching system →roll forming-automatic cutting - flanging - finished product , to produce a wide range of profiles, from heavy-duty industrial racks to retail shelving. Achieve high-speed production, exceptional precision, and rapid changeovers with robust, automated solutions engineered for maximum uptime and profitability.
Automated Supermarket Shelf Back Panels Production Line
Achieve Consistent Quality and High Throughput with a Robust, PLC-Controlled Shelving Back Panels Roll Forming System, Engineered for Continuous, High-Speed Operation.

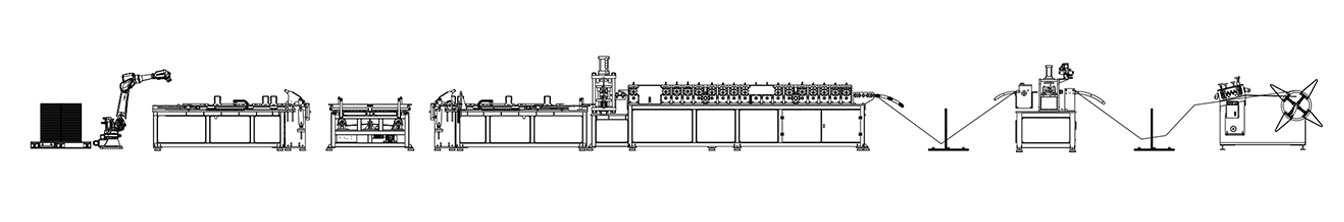

Automated Back Panels Roll Forming Making Line Process
Related Back Panel Production Cases Display

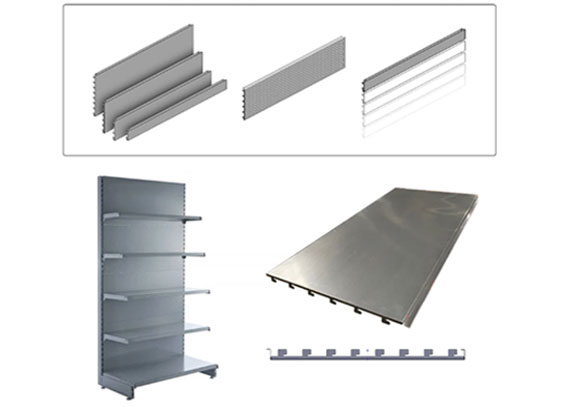

We can customize according to your requirements based on the load-bearing capacity, dimensions, and specifications needed for gondola rack back panels. Here is a showcase of customizations we have made for shelving factories.

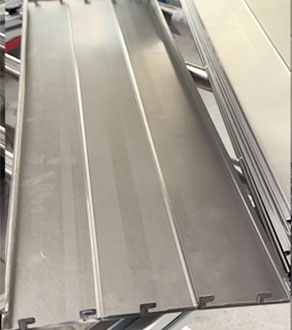

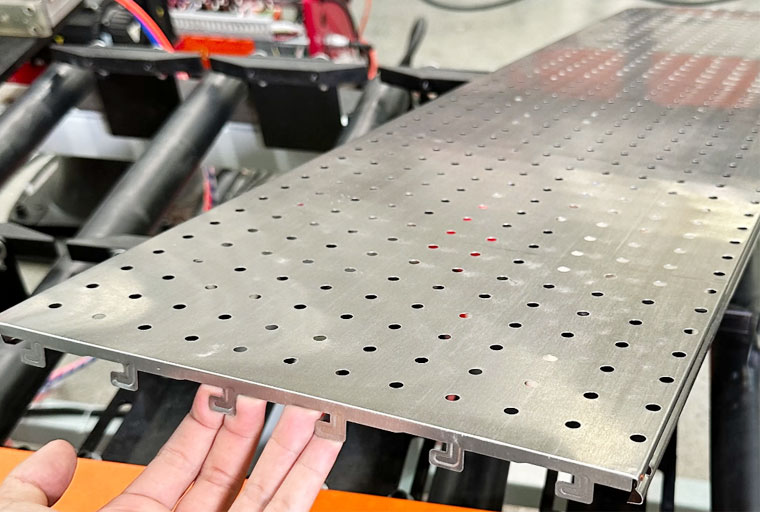

Supermarket shelf back panels
Gondola rack back panels

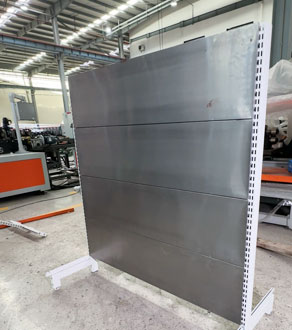

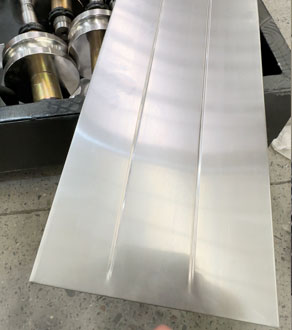

Finished products on shelf back boards
Finished products on shelf back panels
Finished products on shelf back panels
Adavanced Roll Forming Technology in ARMDAX
Our production lines are not just assemblies of standard parts; they are integrated systems featuring advanced technologies designed to maximize your productivity, flexibility, and profitability.

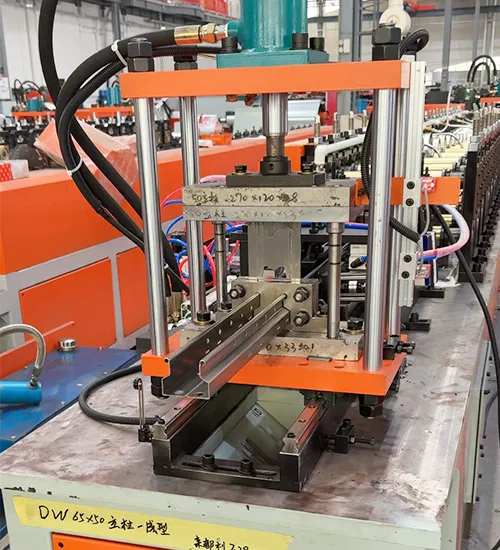

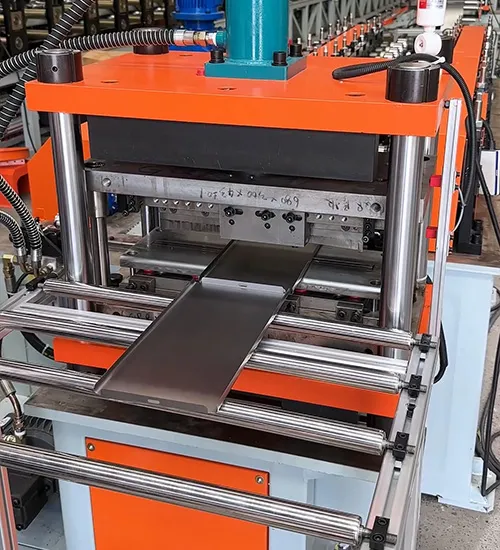

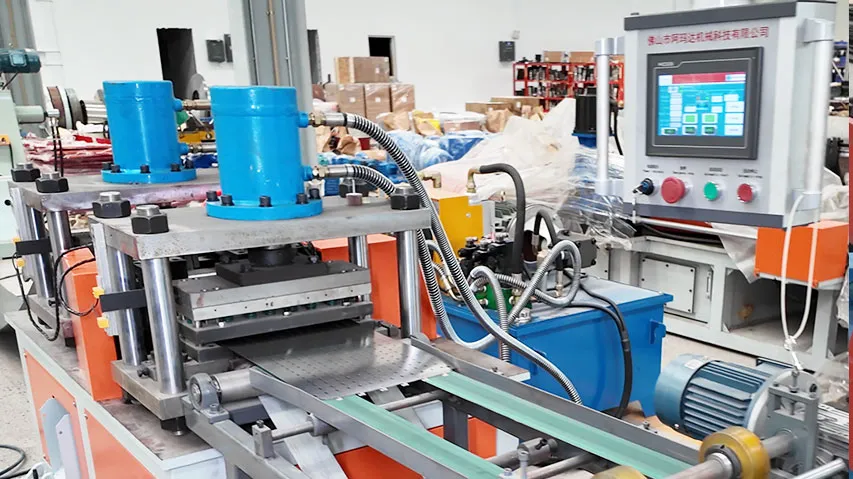

Hydraulic punching & cutting system
Raw Power for Flawless Holes: Hydraulic force delivers clean, burr-free punching through heavy-duty steel used for uprights and beams. Every hole for shelf clips, connectors, and bolts is precise and consistent, eliminating assembly headaches and ensuring structural integrity. All-in-One, No Secondary Work: This system integrates punching and cutting directly into the continuous roll forming line. Material flows from coil to finished, ready-to-assemble components in a single pass. No extra handling, no wasted time, no extra labor costs.

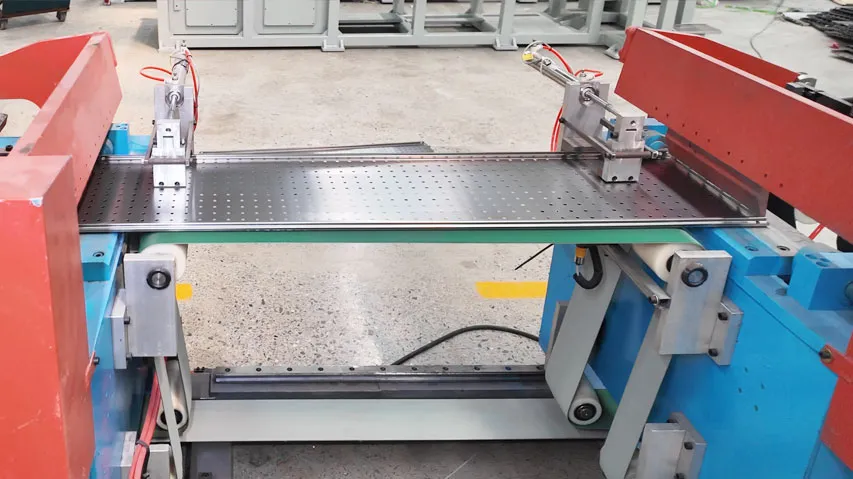

Double-Turned Edges System
In the world of gondola racks and retail displays, the edge is everything. Our production line features an advanced Double-Turned Edges System that transforms raw metal into the safest, strongest, and most professional panels on the market.The clean, consistent edge provides a streamlined, high-end look that enhances the aesthetics of the final display. No exposed rough edges, no snagged packaging.

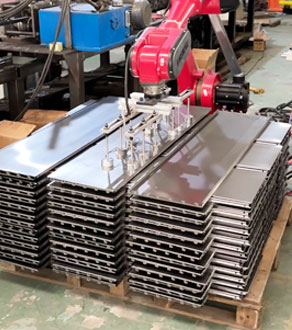

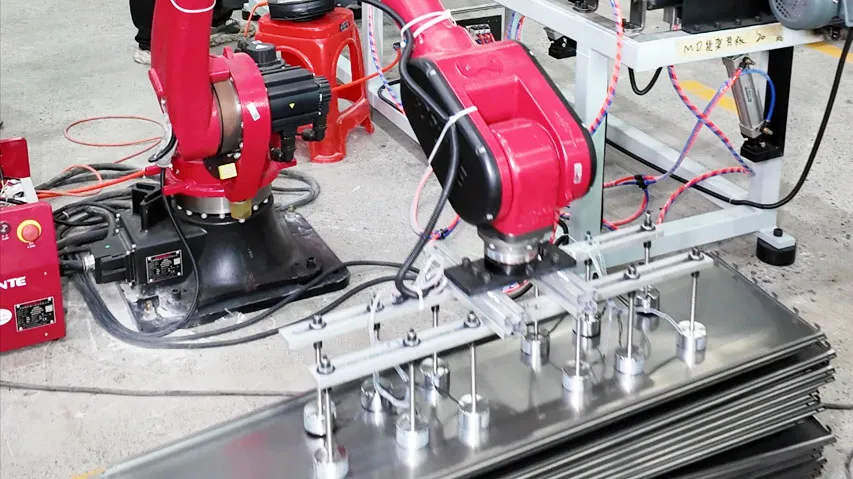

Palletizing Robots
Eliminate Manual Labor: The robot autonomously picks finished racks from the line and stacks them onto pallets with perfect alignment. This drastically reduces manual handling, cutting labor costs and freeing your team for higher-value tasks. Every rack is picked and placed in the exact same position. This ensures perfectly balanced, stable pallets that are ready for wrapping and shipping—no more misaligned stacks or product damage.
Engineered for Peak
Performance and Precision
Every component and parameter of our production line is designed and specified to deliver consistent, high-quality output.
| Product Material： | Material Thickness： |
| Product Width Range： | Margin of error： |
| Drive System： | Form speed： |
| Control System： | Roller material： |
Download Full Technical ProposalFrom Steel Coil to Shelf Panel
100,000 +
Success Cases
Finished column products
Finished column products Finished column products
Finished column products
Finished column products
Ready to Optimize Your Production?
FAQS
Q: What is your after-sales repair policy about cold roll forming machines?
A：
We provide a one-year warranty for the entire machine. For key components such as the main unit, servo motors, and CNC controllers—excluding consumable parts (tools) from warranty coverage—if any non-human-caused malfunction occurs, we will immediately ship replacement parts free of charge via DHL/FedEx.
Q: What is the maximum material thickness and width your roll forming machines can handle?
A：
ARMDAX roll forming machines are built to handle a wide range. Typically, we work with material thicknesses from 0.2mm to 5 mm and coil widths can be adjustable. However, specific capabilities depend on the profile design and material strength. Our engineers will provide exact specifications after reviewing your requirements.
Q: What is the warranty policy of ARMDAX machines ?
A：
We provide warranty service within 1 year, for wearing parts, free replacement within half a year. Detailed warranty terms are provided in our contract.
